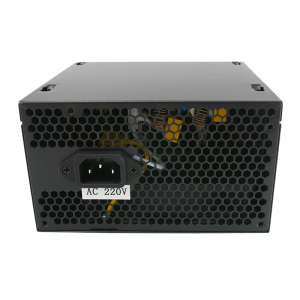

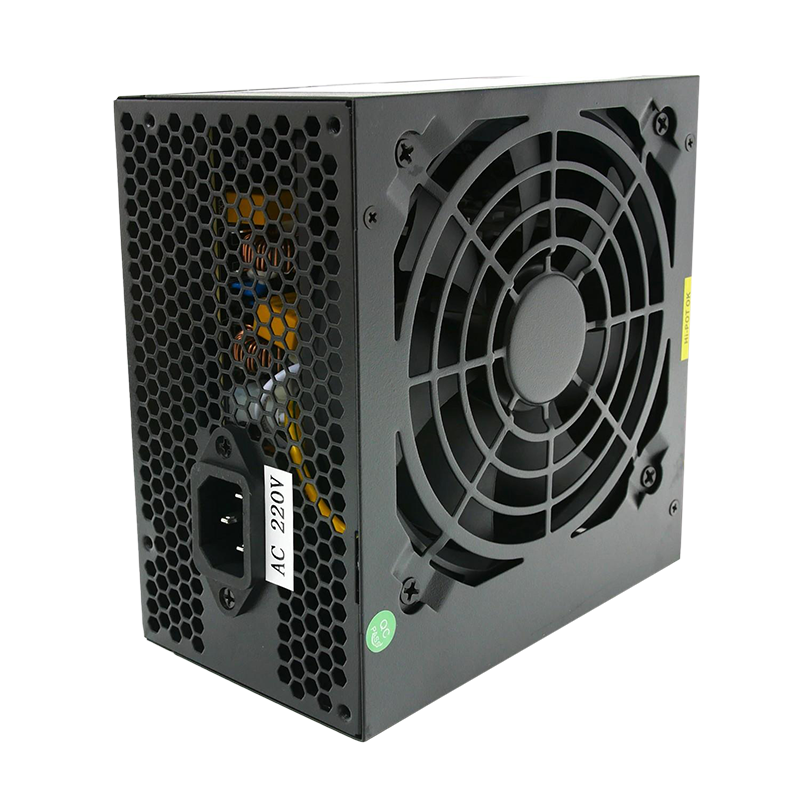

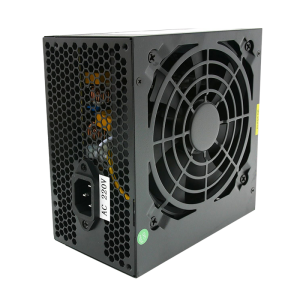

Floston FL500-PCIE
For smaller to medium PC Cases.
KEY FEATURES
• 500W maximum combined wattage
• Active cooling with 120 mm Fan
• Dimensions: 150 x 140 x 86 mm
• Black colour
• Support for Discrete GPU with 1 x 6 Pin PCI-e power connector
DESCRIPTION

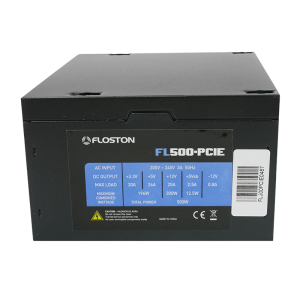

Floston FL500-PCIE is a power supply with a maximum combined wattage of 500W, offering 20A on 3,3V Rail, 26A on 5V, 25A on +12V and 2.5 Amps on +5Vsb rail, therefore it is recommended for an multimedia or light gaming PC coupled with one of our smaller to medium PC Cases.

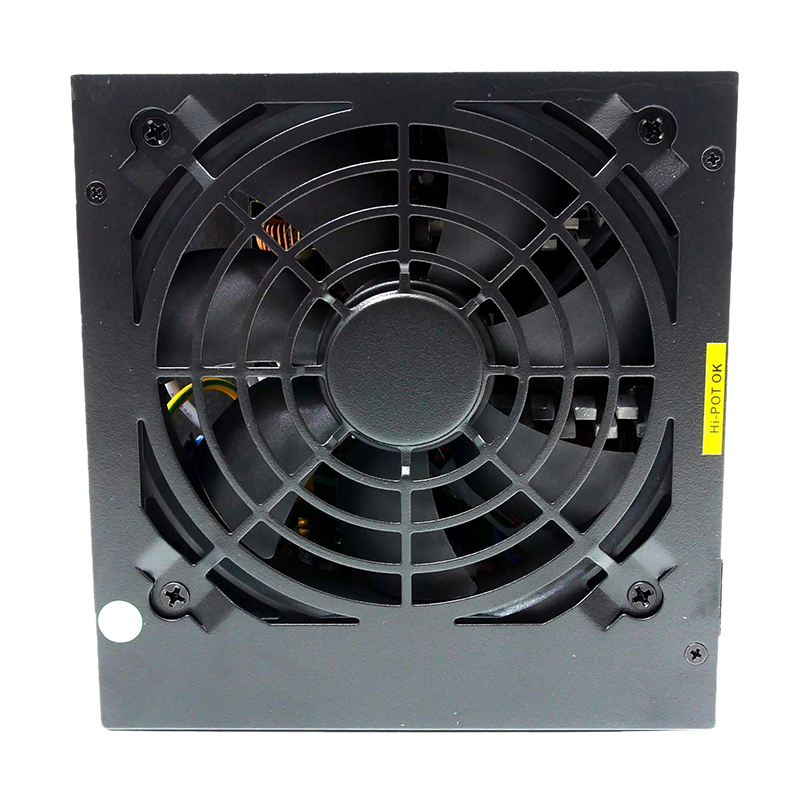

The cooling of the PSU is provided by a huge 120 mm fan, that also cools the components of the PC by extracting warm air from the case if it is mounted on top.
Floston FL500-PCIE
Floston FL500-PCIE
Floston FL500-PCIE
Floston FL500-PCIE
Floston FL500-PCIE
Floston FL500-PCIE
Floston FL500-PCIE
Floston FL500-PCIE
HIGHLIGHTS
Of course, we recommend that the case is provided with at least one large fan for better cooling, but if the total power draw of the pc is under 220 w in peak load, the cpu cooler and the fan from the PSU are enough. Aditionally the PSU offers SCP,OCP,OVP protections for better PC stability and reliability.
The Psu dimensions are: 150 x 140 x 86 mm and the typical colour is black. The connectors for the PSU are: 20+4 Pin ATX – 1, 4+4 Pin ATX/EPS – 1, S-ATA power connectors x 2, 1 x 6 Pin PCI-E and MOLEX x 2.
