DESCRIPTION

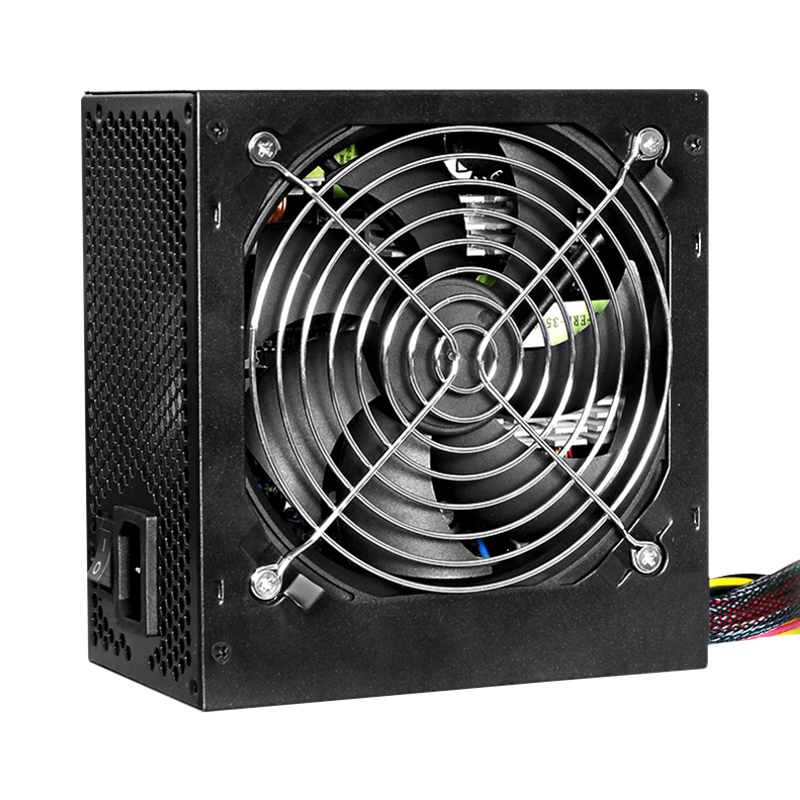

Floston FL500 EXTRA is a power supply with a maximum combined wattage of 500W, offering 20A on 3,3V Rail, 26A on 5V, 25A on +12V and 2.5 Amps on +5Vsb rail, therefore it is recommended for an office, multimedia or light gaming PC with an discrete GPU with a maximum of 1 x PCI-E 6 power connector, coupled with one of our smaller to medium PC Cases.

The cooling of the Floston FL500 EXTRA is provided by a huge 120 mm fan, that also cools the components of the PC by extracting warm air from the case if it is mounted on top.

Of course, we recommend that the case is provided with at least two aditional large fans for better cooling, but if the total power draw of the pc is under 220 w in peak load, the cpu cooler and the fan from the PSU are enough.

The Psu dimensions are: 150 x 140 x 86 mm and the typical colour is Black.

The connectors for the PSU are: 20+4 Pin ATX – 1, 4+4 Pin ATX/EPS – 1, S-ATA power connectors x 4, 1 x 6 Pin PCI-E and MOLEX x 2.

Also it is one of the reccomended PSU’s for those who prefer a careful cable manegement due to the partial cable sleeving of this unit.
